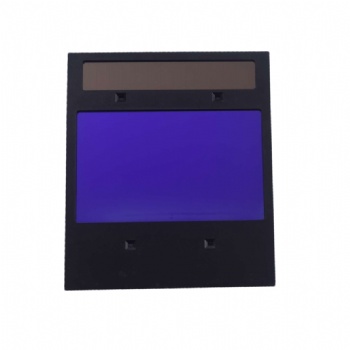

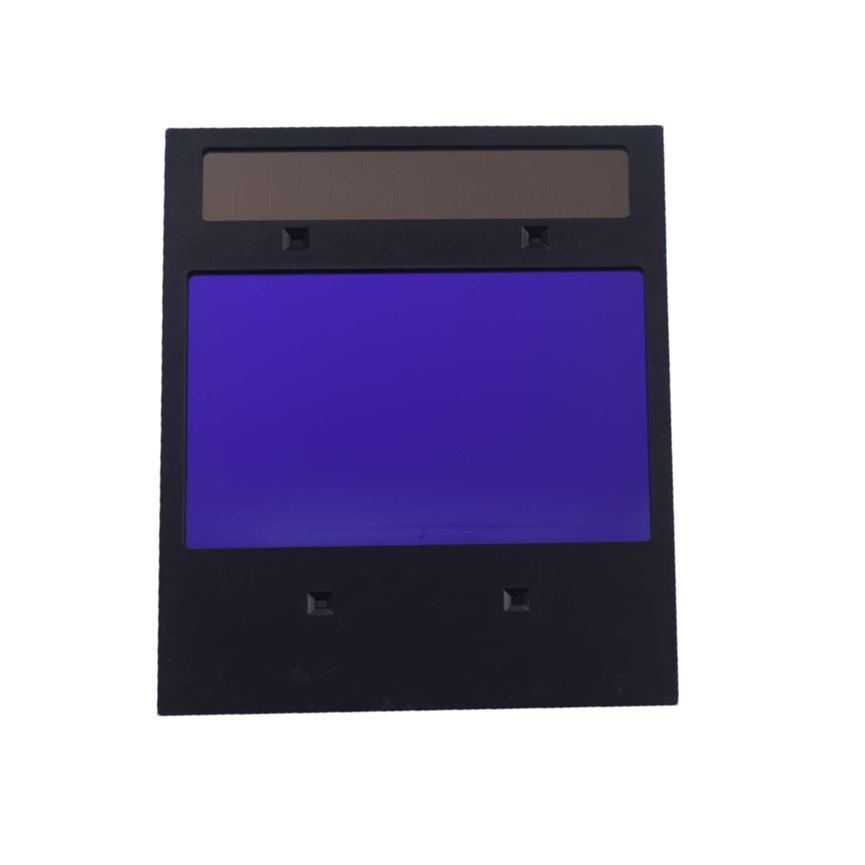

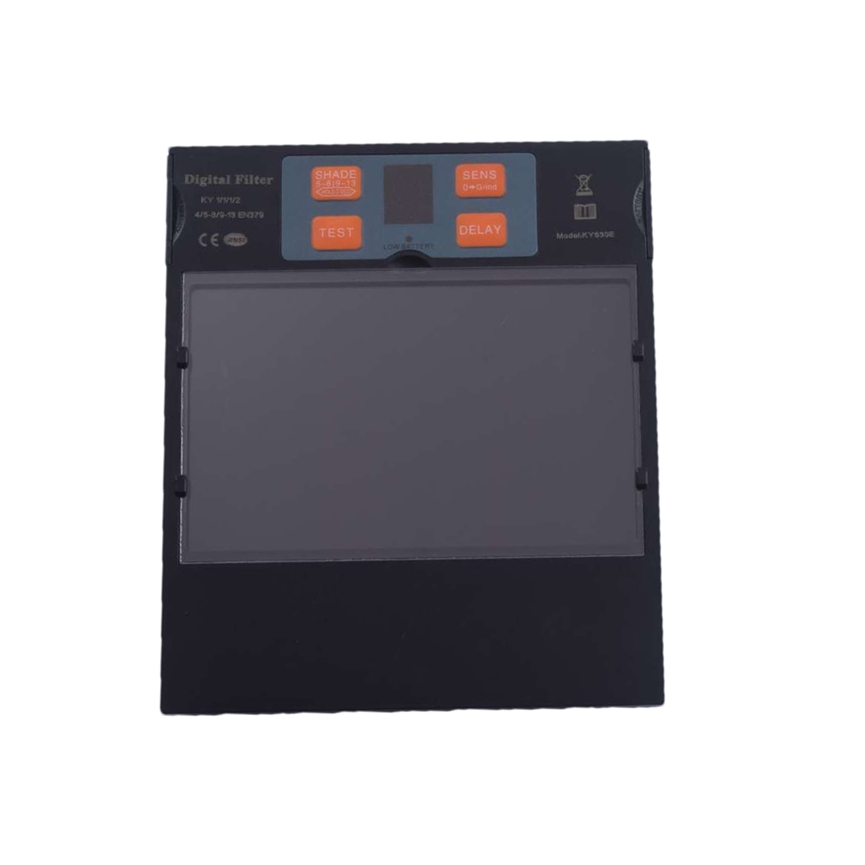

KY-630E

Material: ABS + PP + FR-4
Weight: about 145g

Inquiry Now

ADF   ModelKY-630E
Cartridge/Filter size(mm)114X133X10
Viewing Area(mm)103x62.5
Optical Class1/1/1/2 or 1/1/1/1
Arc Sensor
Power SupplySolar Cells And Lithium Battery
Battery Specs/QuantityCR2450/2
Rated Capacity of Battery1260mAh
Replaceable BatteryYES
Light ShadeDIN3.5
Dark ShadeDIN5-8/9-13
Shade ControlInternal [inside],Digital Control
Sensitivity ControlDigital Control
Switching Time(Light to Dark)1/10000S or 1/25000S
Delay Time(Dark to Light)0.1/0.3/0.6/0.8/1.0
Grinding FunctionYES
Cutting FunctionYES
ADF Self-checkYES
Low Amperage TIG Rated≥5A
UV/IR ProtectionDIN16
Low Volume AlarmYES
Operating Temperature-5℃~+55℃
Storing Temperature-20℃~+70℃
