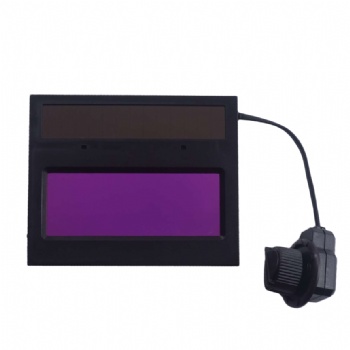

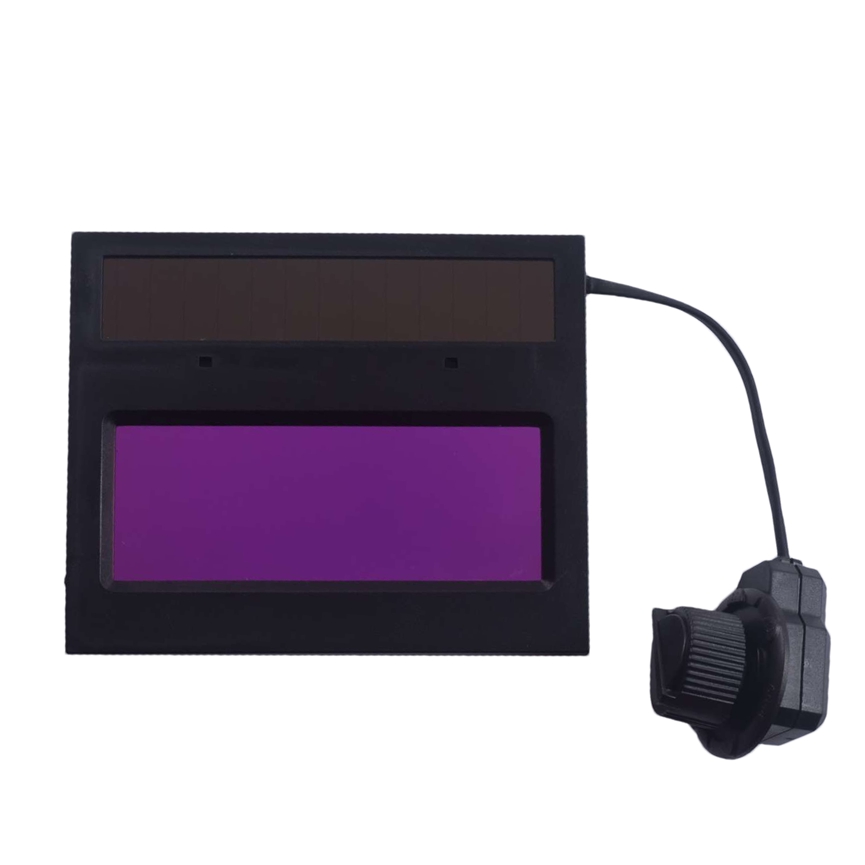

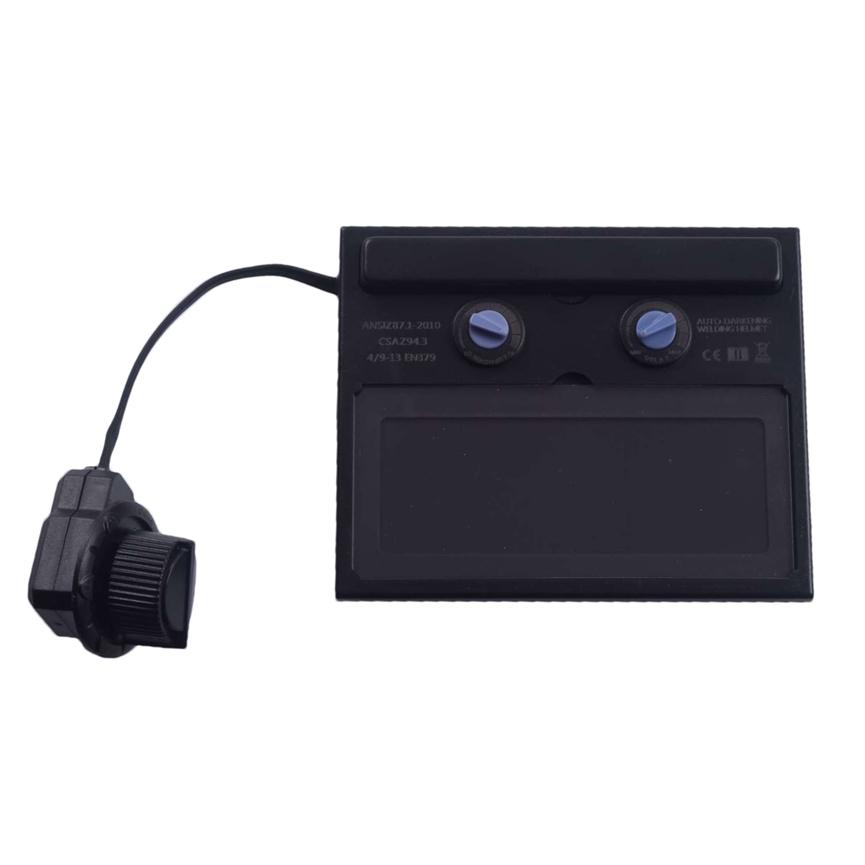

ADF Model | KY-3D |
Cartridge/Filter size(mm) | 110x90x9 |
Viewing Area(mm) | 90x30 |
Optical Class | 1/1/1/2 |
Arc Sensor | 2 |
Power Supply | Solar &AAA Battery |
Battery Specs/Quantity | AAA battery/2 |
Rated Capacity of Battery | 2*1300mAh |
Replaceable Battery | YES |
Light Shade | DIN4 |
Dark Shade | DIN9-13 |
Shade Control | External(outside),Variable, By Infinitely Dial Knob |
Sensitivity Control | By Infinitely Dial Knob |
Switching Time[Light to Dark] | 3/10000S |
Delay Time(Dark to Light) | 0.3-0.6S By Infinitely Dial Knob |
Grinding Function | YES |
Cutting Function | NO |
ADF Self-check | NO |
Low Amperage TIG Rated | ≥30A |
UV/IR Protection | DIN16 |
Low Volume Alarm | NO |
Operating Temperature | -5℃~+55℃ |
Storing Temperature | -20℃~+70℃ |
